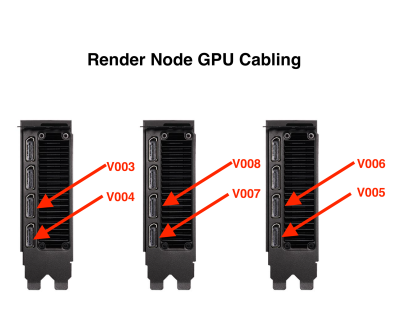

RenderNode GPU Cabling Diagram

The GPUs are in the order that you see them in the back of the server rack.

On Old Servers:

On New Servers:

357
468
XXX
XXX

Which projectors the cables connect to:

Left Wall V003
Front Left V005
Front Right V006
Right Wall V004
Floor Left / Ceiling Left V007
Floor Right / Ceiling Right V008
